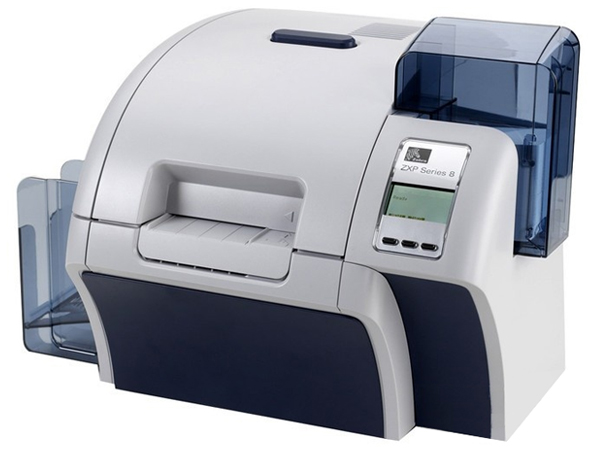

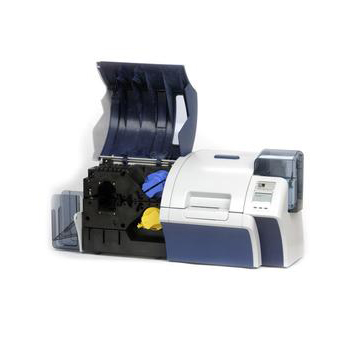

ZXP Series 8™ Retransfer Card Printer
Printing
•Dye sublimation retransfer
•Full color or monochrome retransfer printing
•Single- and dual-sided printing
•Max print speed single-side 190 cph*
•Max print speed dual-sided 180 cph*
•Photo quality image
•Over-the-edge printing on standard CR80 media
*Print speed based on click to drop, average print coverage, with USB connectivity, card per hour (cph).
Standard Features
•USB and Ethernet connectivity
•Single-card feed and eject capability
•150 card capacity feeder (30 mil)
•15 card reject hopper (30 mil)
•100 card output hopper (30 mil)
•i Series™ intelligent media technology
•Auto-calibration of media
•21-character, 6 line LCD operator display
•304 dpi (12.0 dots/mm) print resolution
•64 MB memory standard
•Lifetime warranty on printhead
•2-year limited warranty on printer
•Microsoft® Windows®certified drivers
• Kensington physical lock capable
Options and Accessories
•Laminator—single-sided and dual-sided
•Lockable enclosure/card feeder
•ZebraCare™ warranty programs
•802.11b/g wireless connectivity
•Card input hopper (150 cards 30 mil)
Encoding Options & Specifications
•Smart card contact station—ISO 7816
•Magnetic stripe encoder—ISO 7911 and JIS II LoCo
•Combined MIFARE® ISO 14443(13.56 MHz) and ISO 7816 contact encoder
•EMV level 1 certified
•UHF Gen 2 RFID encoder**
•FeliCa contactless encoder**
•Encoding over Ethernet—requires ZBR-PS300
Ethernet-to-USB Device Server
**Coming soon

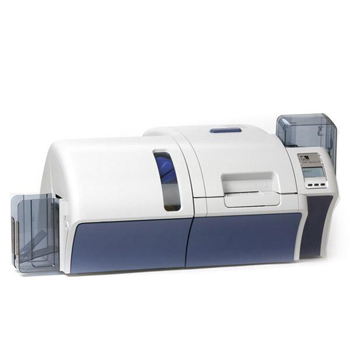

Laminator Specifications
•Single-or dual-sided lamination option (with dual-sided printer only)
•180 cards per hour dual-sided printing and dual-sided lamination
•GSA FIPS 201 approved (dual-sided lamination)
•Uses Zebra True Secure i Series laminates only
•Laminate for the top and bottom sold separately
•Custom-coded laminates available
ZMotif Software
Microsoft Windows Certified Printer Drivers
Supported: Windows XP, Windows Vista®,Windows Server® 2003, Windows 7 32 bit and 64 bit compatible
Driver Features:
•Graphical card orientation setting to visualize card printing setup and configuration
•Card source and card type selection
•Complete graphical control over area and element selection of black extraction parameters
•Auto sensing of ribbon type, laminator and smart card encoding options
Toolbox Utility Features:
•Printer configuration tools and utilities for complete control over all printer functions and features
•Optional password protection settings and user role-based security settings prevent accidental or unauthorized driver or printer configuration changes
•Complete technology card management enables setup and testing of all printer and encoder features and functionality
•Printer test cards and diagnostics utilities ensure error-free printing and fast troubleshooting capabilities
XML-Based SDK:
• Downloadable SDK for custom applications
•XML-based SDK enables third parties to quickly add advanced print and encoding features to the ZXP printer
•Capabilities include direct access to PC/SC Smart Card encoder driver and XML-based job control print job specifications
•Support for complete Uv printer and inhibit panel support
Supplies:
•Zebra i Series intelligent technology uses RFID tags to authenticate and automate color ribbons, transfer film and laminate
•Media Starter Kit—1 YMCK ribbon, 1 roll of transfer film, 200 PVC cards, 2 cleaning rollers (kit not sold separately)
•Cleaning supplies
True Colours i Series Ribbon
•YMCK 4 panel: 625 images/roll
•YMCKK 5 panel: 500 images/roll
•YMCUvK 5 panel: 500 images/roll
•YMCKI 5 panel: 500 images/roll
•YMCKKI 6 panel: 415 images/roll
•YMC 3 panel: 800 images/roll
•Monochome black: 2500 images/roll
True Colours i Series Transfer Film
•Clear and holographic: 1250 single-sided/650 dual-sided cards/roll
True Secure i Series Laminate
•Linerless & waste-free 1.0 mil top and bottom laminate: 625 images/roll
•Laminate types: clear top, clear bottom, magnetic stripe, signature, smart card, and holographic wallpaper designs
•Custom laminates available with holographic images
•Custom coded laminates available
Card Specifications
•Card thickness: 30 – 40 mil
•Card size: ISO 7810 format, Type ID-1, CR-80 size
•Card material: PVC and composite, ABS cards, PET, PET-G, and Teslin® composite***
•Specialty cards: transparent (IR-blocked) or translucent card 30 mil (clear and colored)***
•Technology cards: contact and contactless smart cards, UHF cards***
*** Please contact your Zebra reseller for qualification of cards Communications Interfaces
•USB V2.0
•10/100 Ethernet (encoding over Ethernet requires ZBR PS-300 Ethernet-to-USB Device Server)
Electrical
•Single-phase AC power
•100V~240V AC and 50-60 Hz
Physical
Printer
•Height (w/card hoppers): 13.2"/334 mm
•Width (w/card hoppers): 18.75"/476 mm
•Width (w/card hoppers, w/laminator): 30.75"/781 mm
•Depth: 20.4"/519 mm
•Weight (printer only): 27.5 lbs/12.5 kg
•Weight (printer, laminator): 44 lbs/20 kg
Environmental
•Operating Temperature: 59º F/15º C to 95º F/35º C
•Storage Temperature: 23º F/-5º C to 131º F/55º C
•Operating Humidity: 20% to 80% inclusive, non-condensing
•Storage Humidity: 10% to 90% inclusive, non-condensing
•Shipping Temperature: -40º F/-40ºC to 140ºF/60ºC
•Shipping Humidity:10% to 90% inclusive, non-condensing
•Media should not be above 140º F/60ºC for longer than 200 hours, and above 90% relative humidity at
104º F/40º C for longer than 100 hours
•ENERGY STAR qualified
NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.
;)
;)
;)
